Inline thermographic weld seam monitoring

Inline Weld Seam Monitoring for Tube & Profile Welding Lines

Make every tube weld visible before quality becomes a question. Detect cold welds, pores, penetration issues and process drift in real time with passive infrared thermography.

ThermoProfileScanner TPS TPS applications

The ThermoProfileScanner System

Passive thermography for continuous process confidence.

The ThermoProfileScanner is a patented inline monitoring system for volumetric, non-destructive testing of weld seams in tube and profile welding lines. A high-resolution infrared line camera captures the real thermal field right after welding, helping teams detect deviations while production is still running.

100%: inline weld seam monitoring
300+: applications worldwide
200 m/min: supported welding speed

ThermoProfileScanner TPS product details ThermoProfileScanner downloads

Application

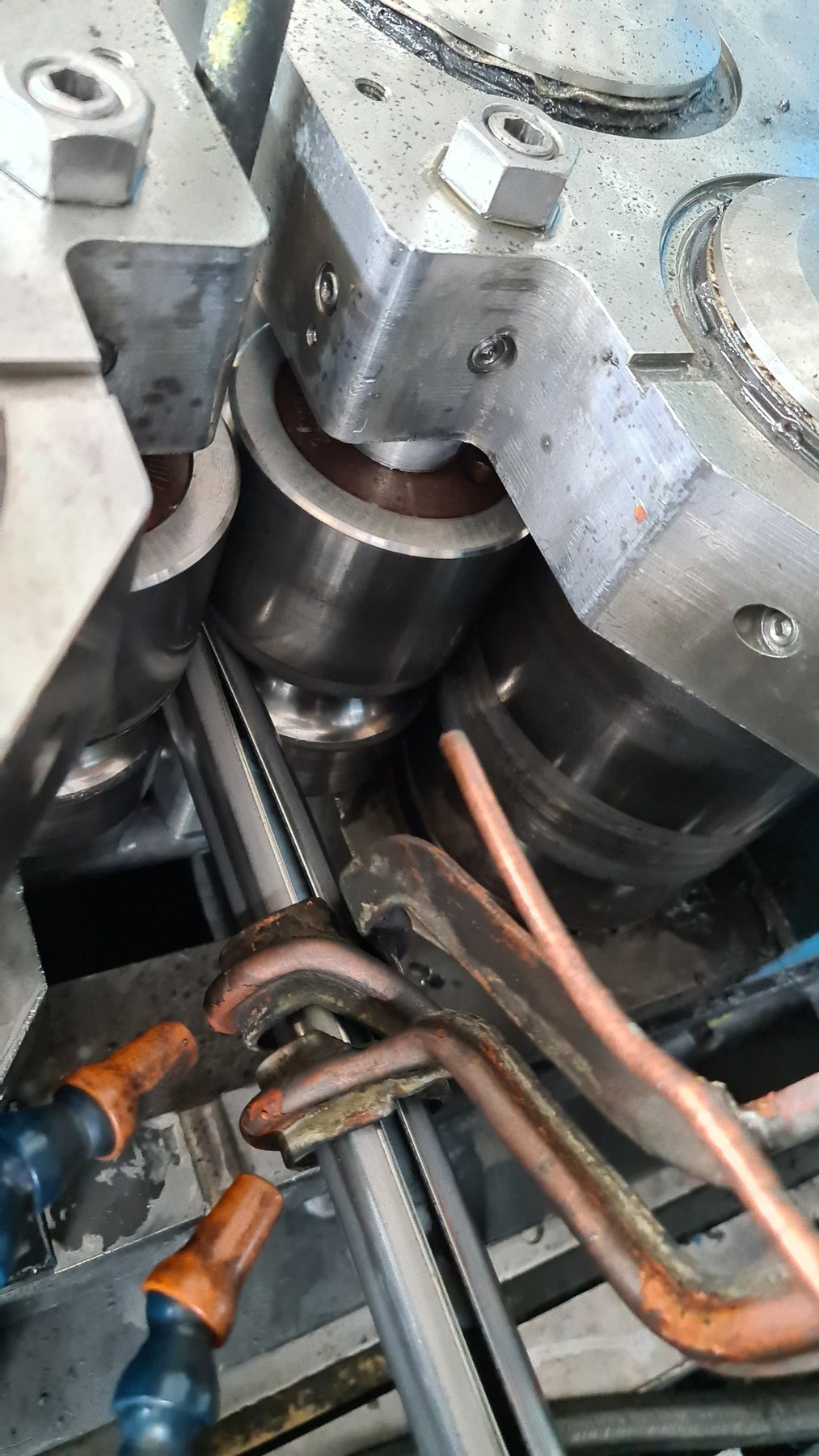

Built for tube mills where speed, traceability, and process stability matter.

TPS supports TIG, Plasma, HFI, ERW, HFW, resistance butt welding, Laser, MAG, and MIG processes across steel, stainless steel, copper, brass, bronze, titanium, nickel, and other metal alloys. From 1.5 mm precision tubes to large profiles, the system is designed for direct production-line integration.

1.5-1000 mm diameter 0.05-20 mm thickness Up to 25 mm seam width

ERW/HFI, laser, TIG and plasma applications

Realignment Information

The ThermoProfileScanner Takes a New Path

As of January 1, 2026, the ThermoProfileScanner business unit begins a new chapter: the division transfers from HKS Prozesstechnik GmbH to Tube Mill Control GmbH, based in Halle.
